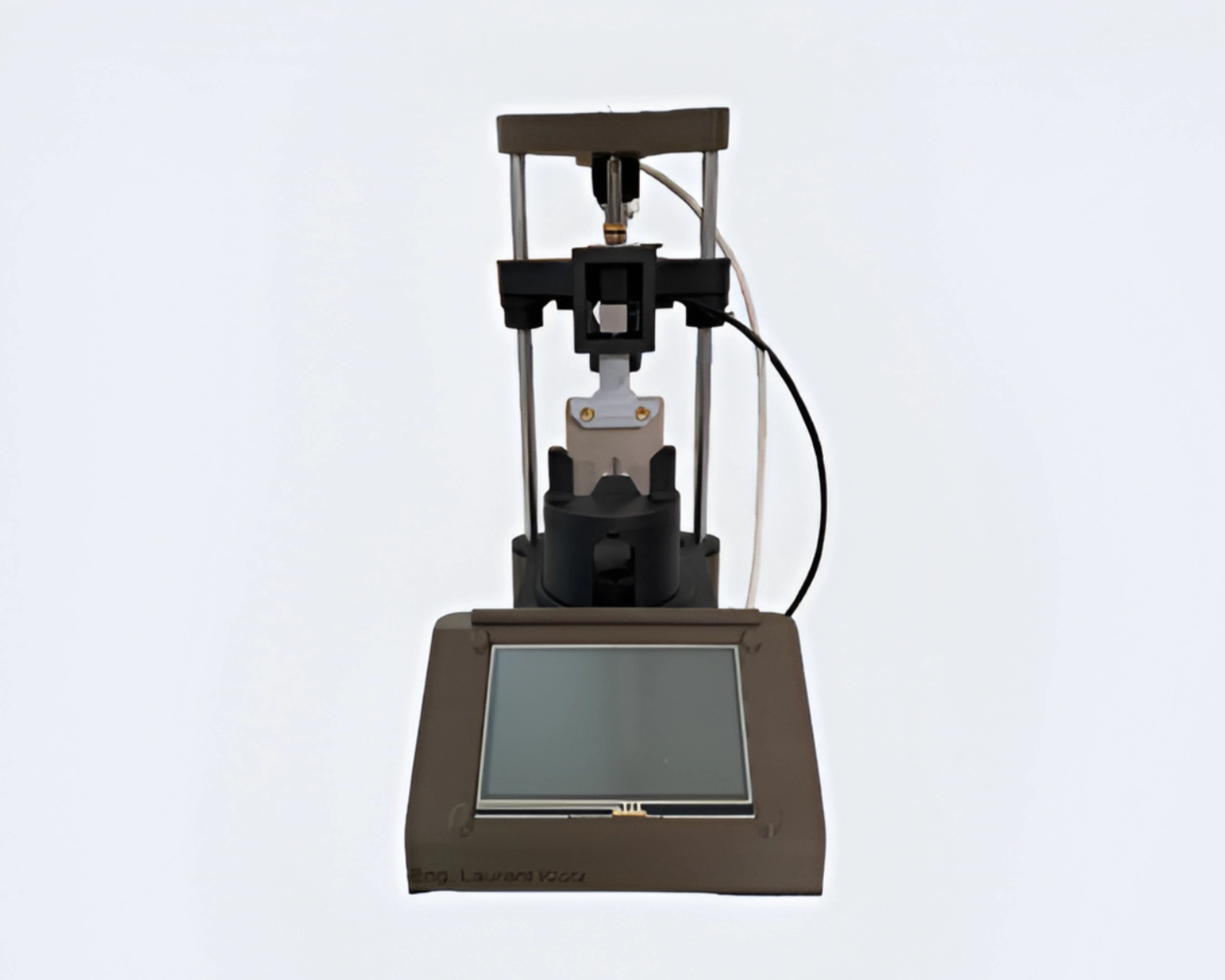

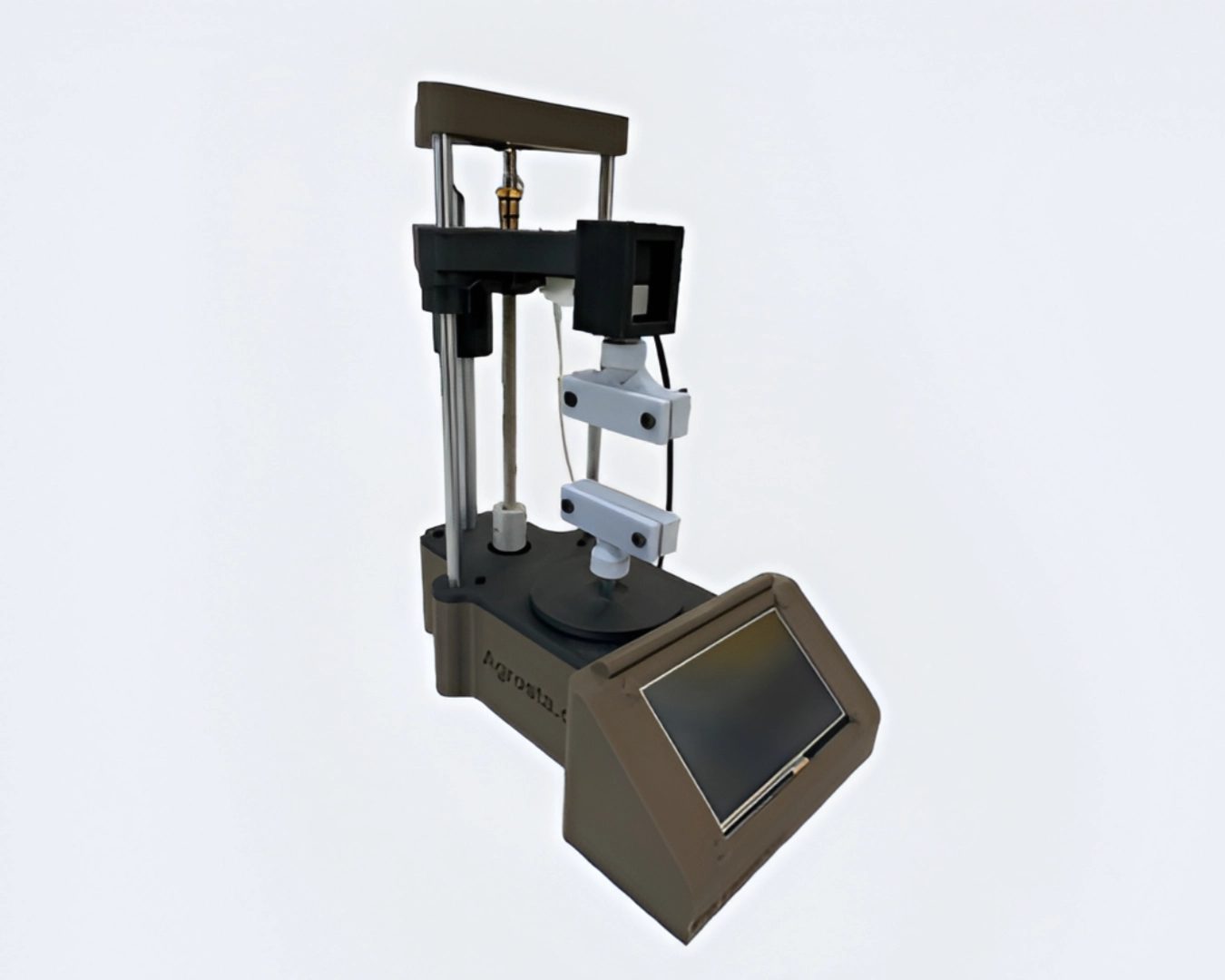

texture analyzer with tensile test tool

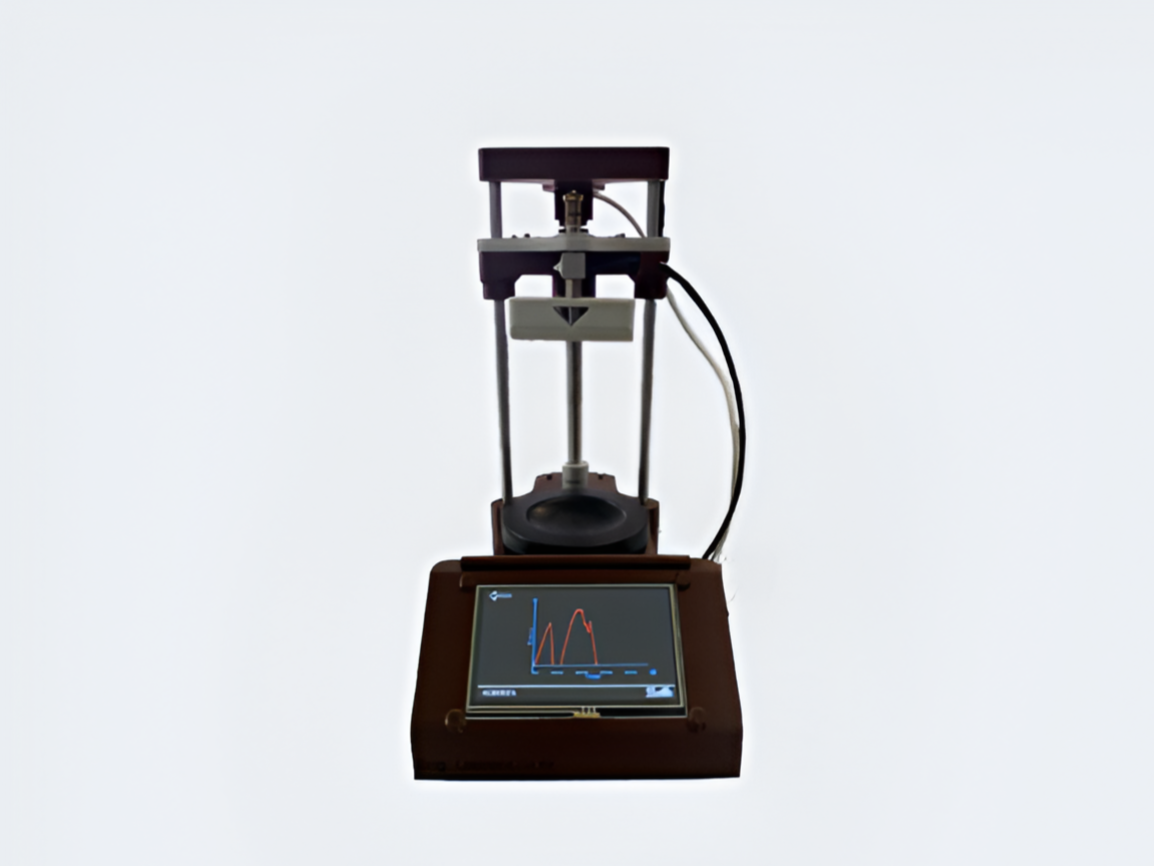

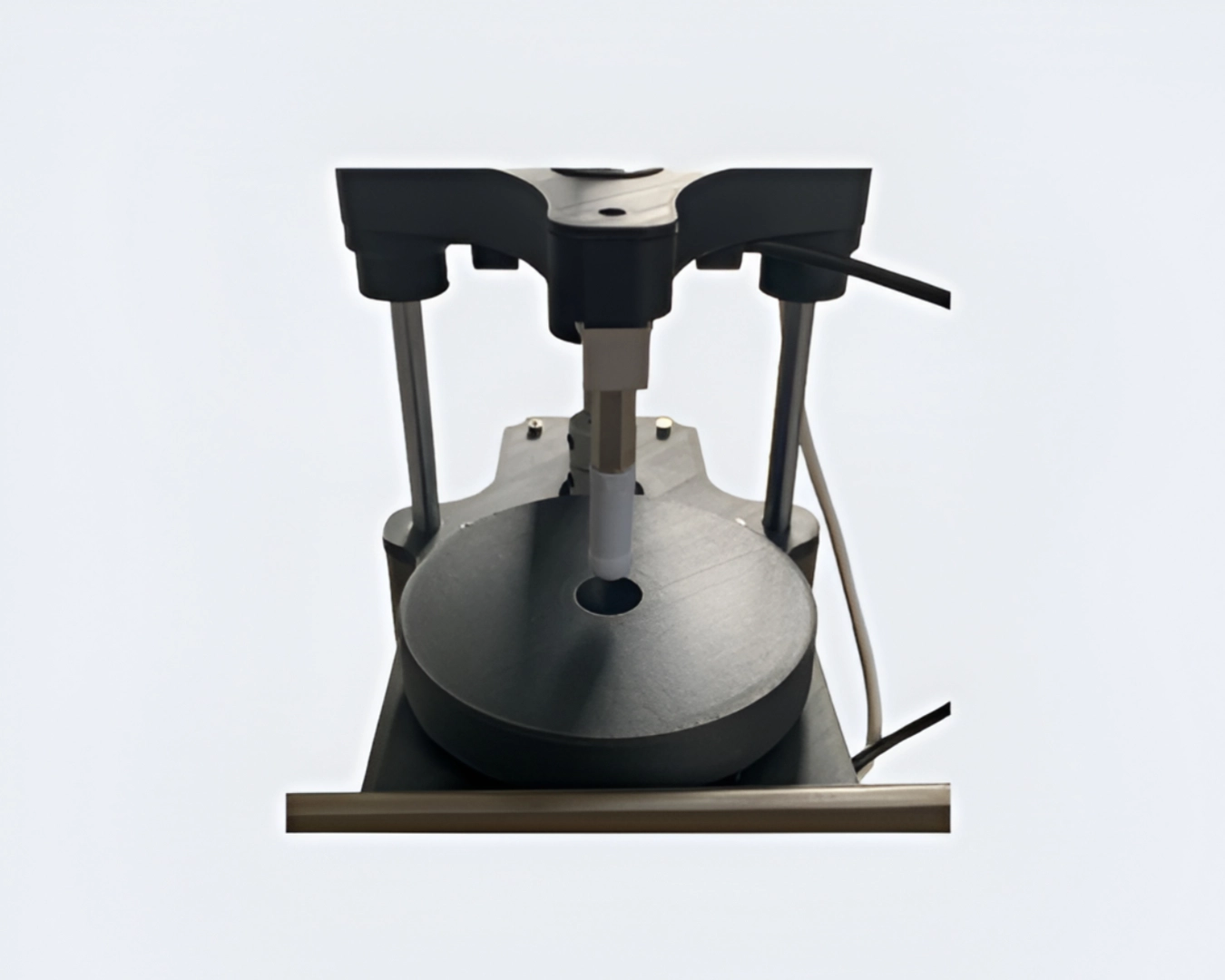

texture analyzer with tip for compression test
Texture analyzer with WARNER BRATZLER SET
texture analyzer for food, pharmaceutical, and other industries
  1. texture analyzer for food, pharmaceutical, and other industries

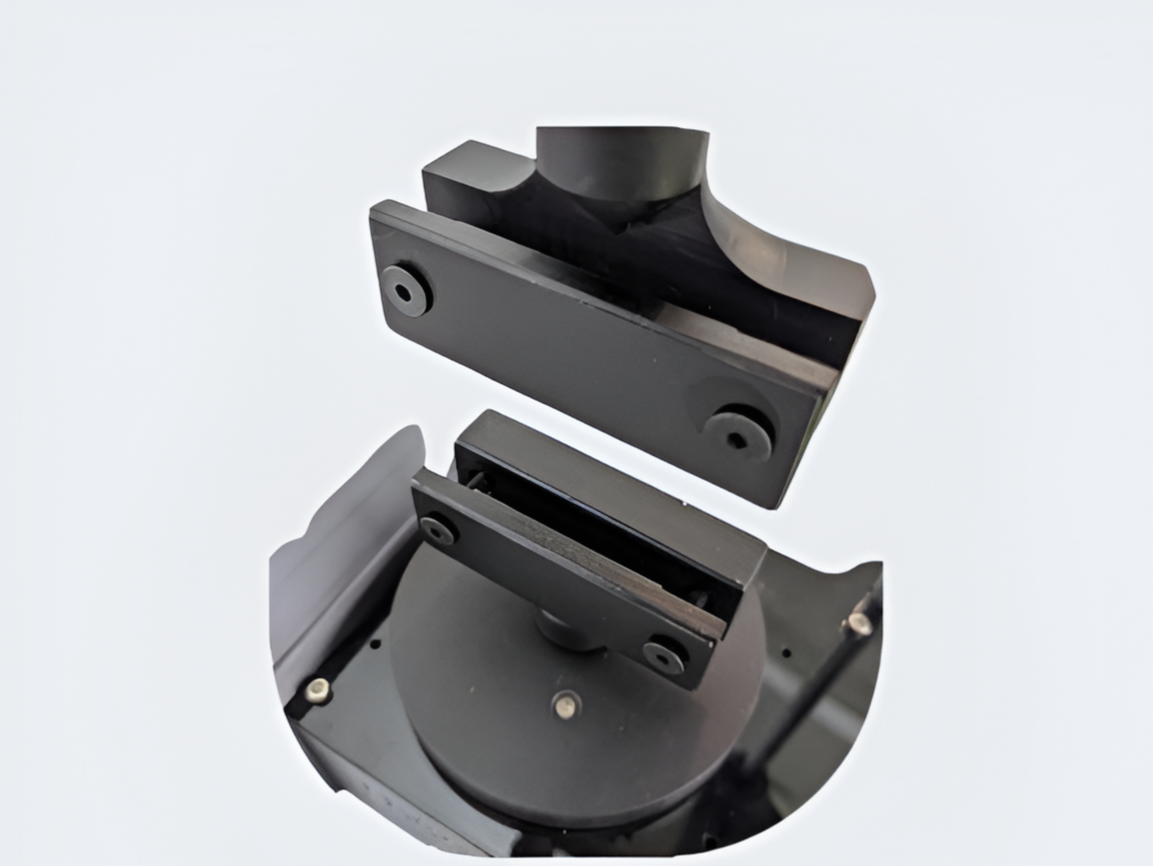

  2. texture analyzer with tensile test tool
  3. texture analyzer with tip for compression test
  4. Texture analyzer with WARNER BRATZLER SET
  5. texture analyzer for food, pharmaceutical, and other industries

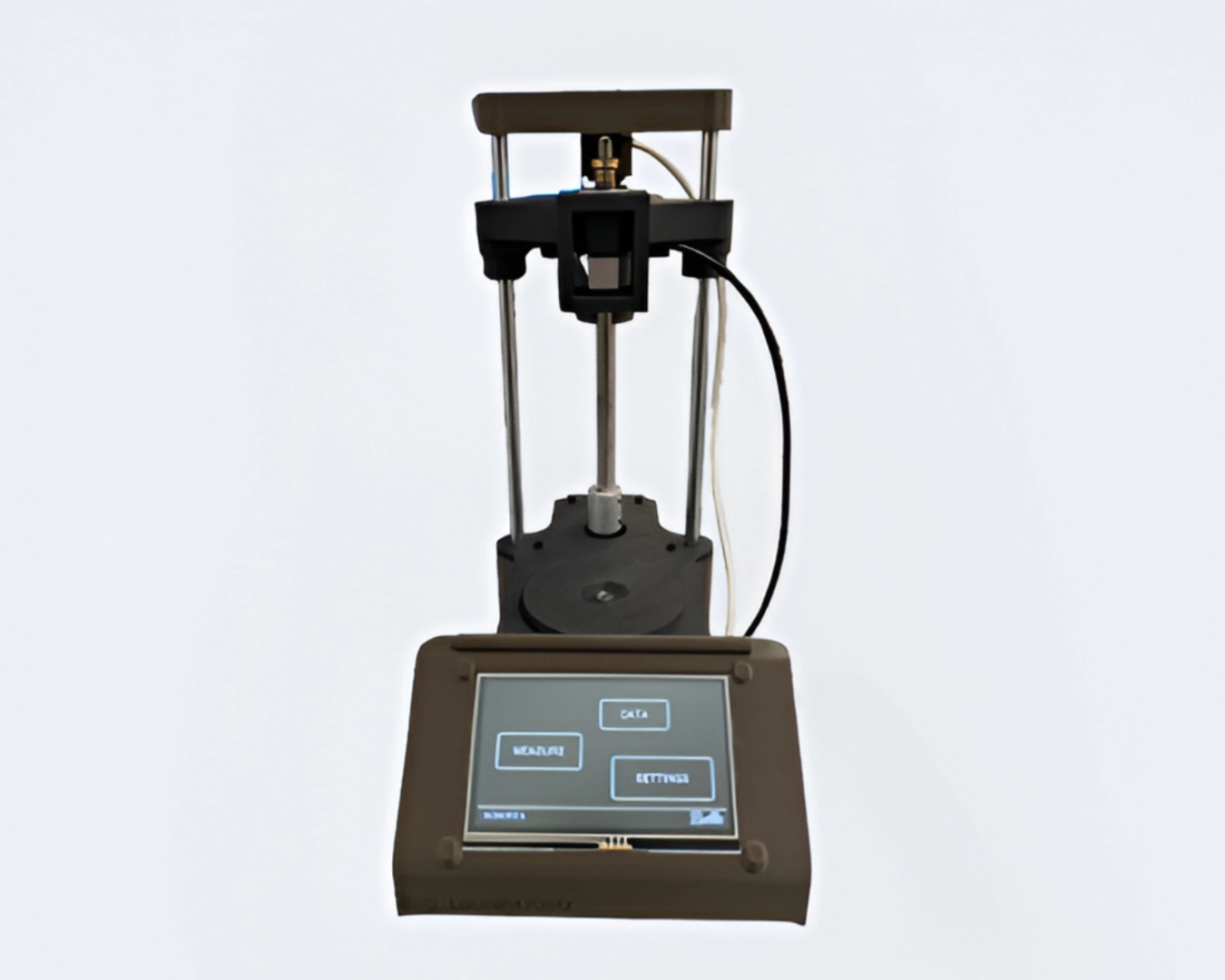

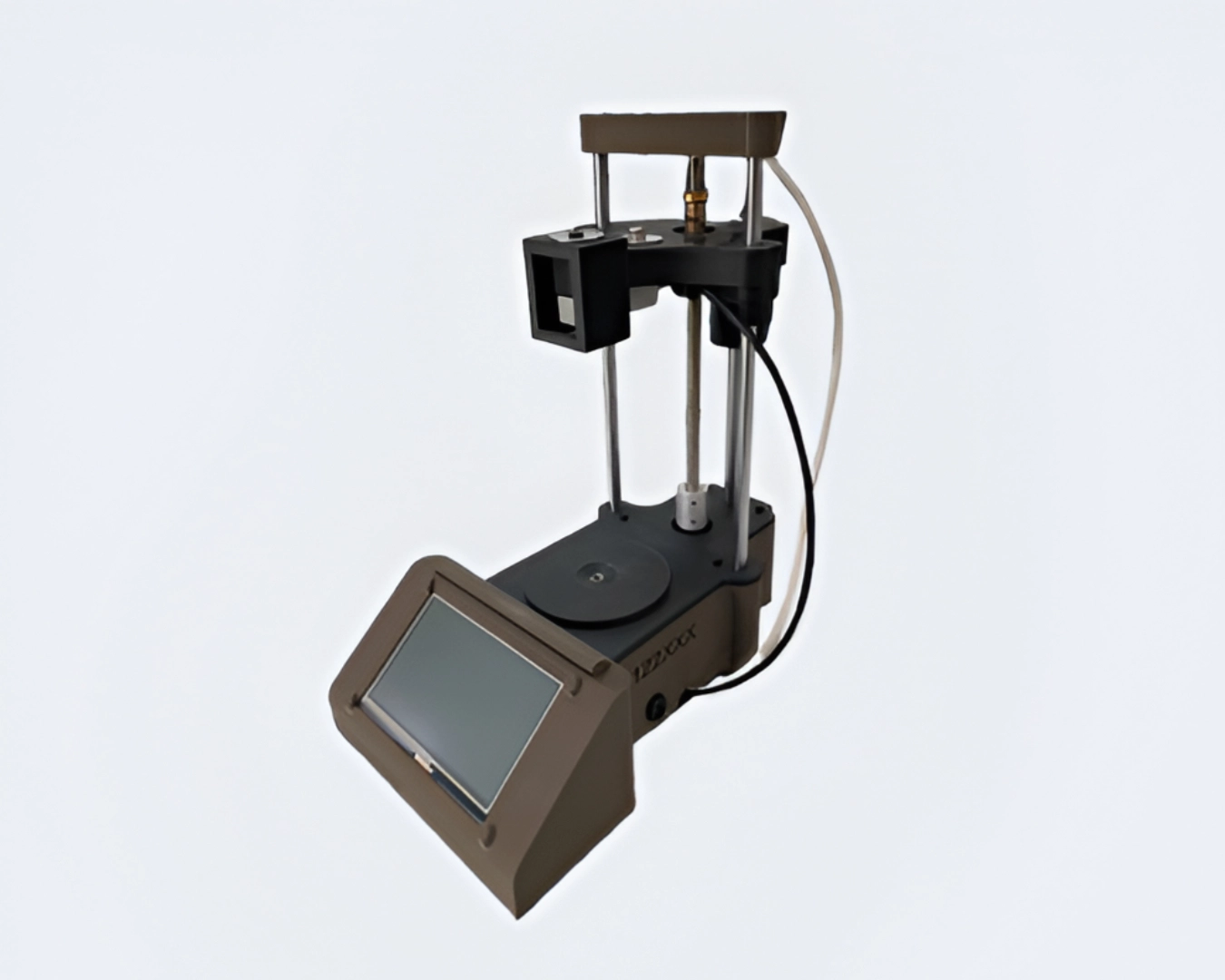

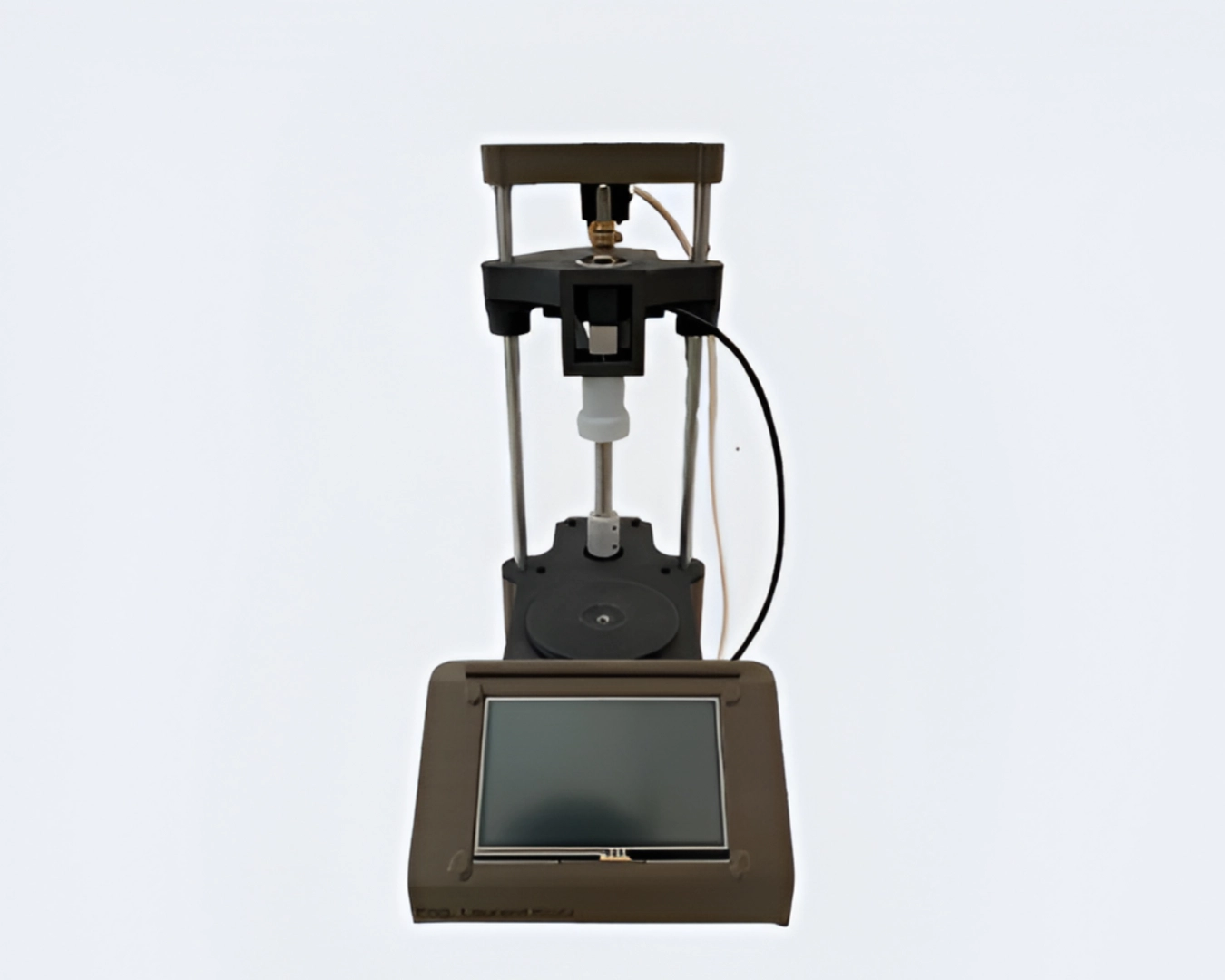

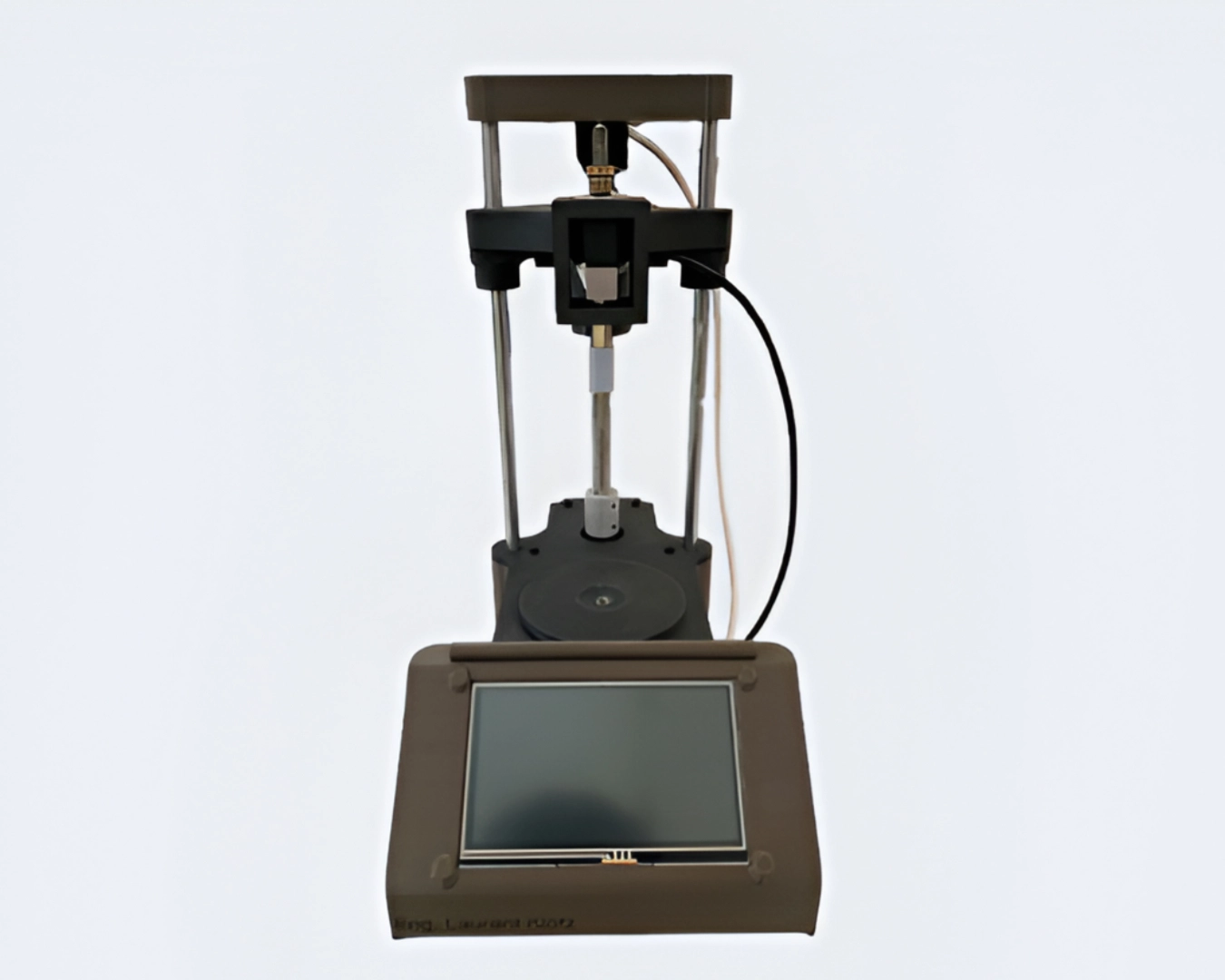

Texture Analyzer AGROSTA®BELLE

€3,900.00

A precise, versatile texture analyzer for food, pharmaceutical, and other industries, with a large touchscreen, Bluetooth connectivity, and multiple testing modes. Ideal for detailed texture profiling and continuous data collection.

Category:

All in one Texture Analyzer

The AGROSTA®Belle2 (2024 version) is a powerful texture analyzer, built for precision in food, pharmaceutical, and general material testing. With a durable design made from PLA plastic and micro carbon fiber, it’s both robust and lightweight. Belle2 can handle any texture testing standard and is simple to operate, delivering accuracy and versatility across various applications. Equipped with a large 4.3” color touchscreen and dual-core microcontroller (one core dedicated to measurements, the other to movement and display), Belle2 is designed for continuous use in demanding environments.

Key Features:

  • Four Testing Modes:

    • Single Pressure: Measures hardness, fracturability, adhesiveness, resilience.
    • Double Pressure: Adds measurements for gumminess, springiness, chewiness, cohesiveness.
    • Pull Mode: Measures maximum pressure and fracturability for tensile tests.
    • Constant Pressure: Records initial and final deflection for steady-load applications.

  • Precise Measurements: Capable of up to 17 kg pressure with 6-gram accuracy, using a high-quality load cell.

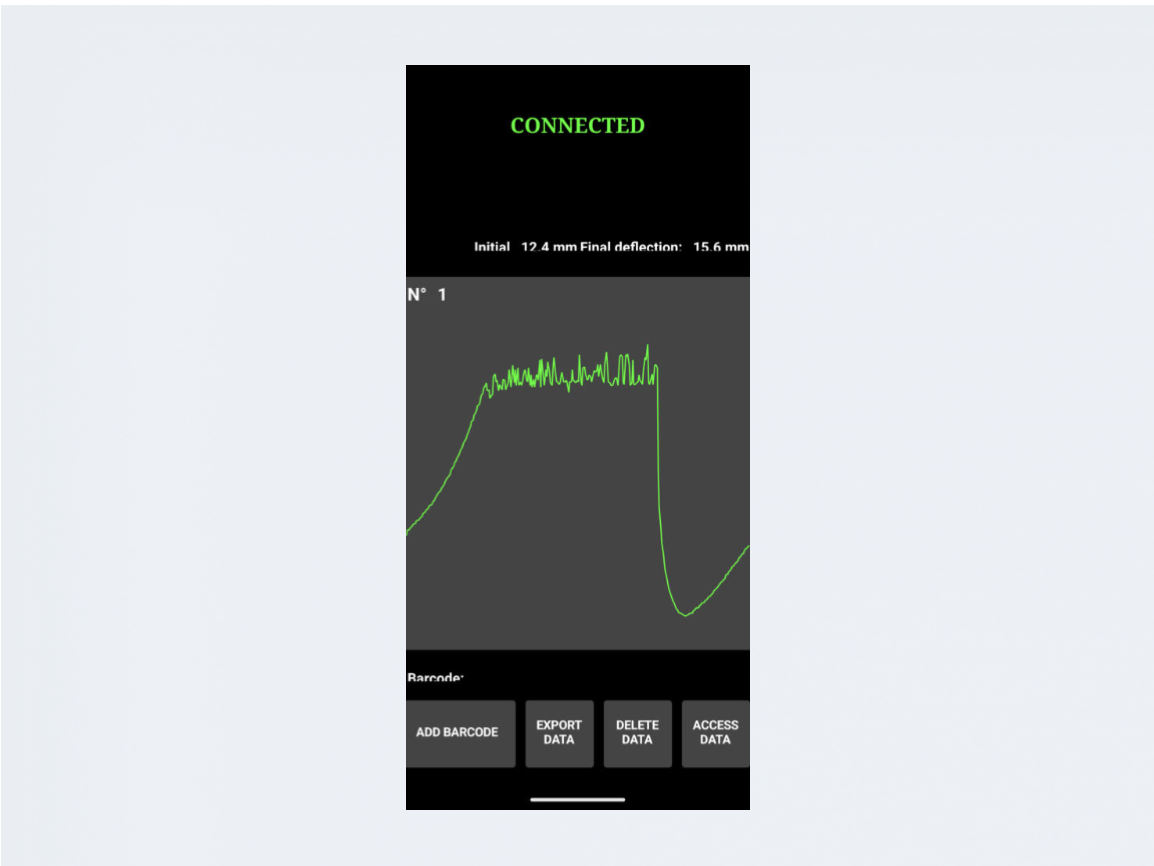

  • High-Speed Data Collection: Records 80 measurements per second, allowing detailed texture profiling. Displays real-time curves via Bluetooth on Android or Windows devices.

  • Extensive Memory: Stores up to 50 batches with 300 measurements each in its 2 MB internal memory. No storage limitation when connected via Bluetooth.

  • Calibration Stand: Included for on-site calibration checks and adjustments, with remote support available from the manufacturer.

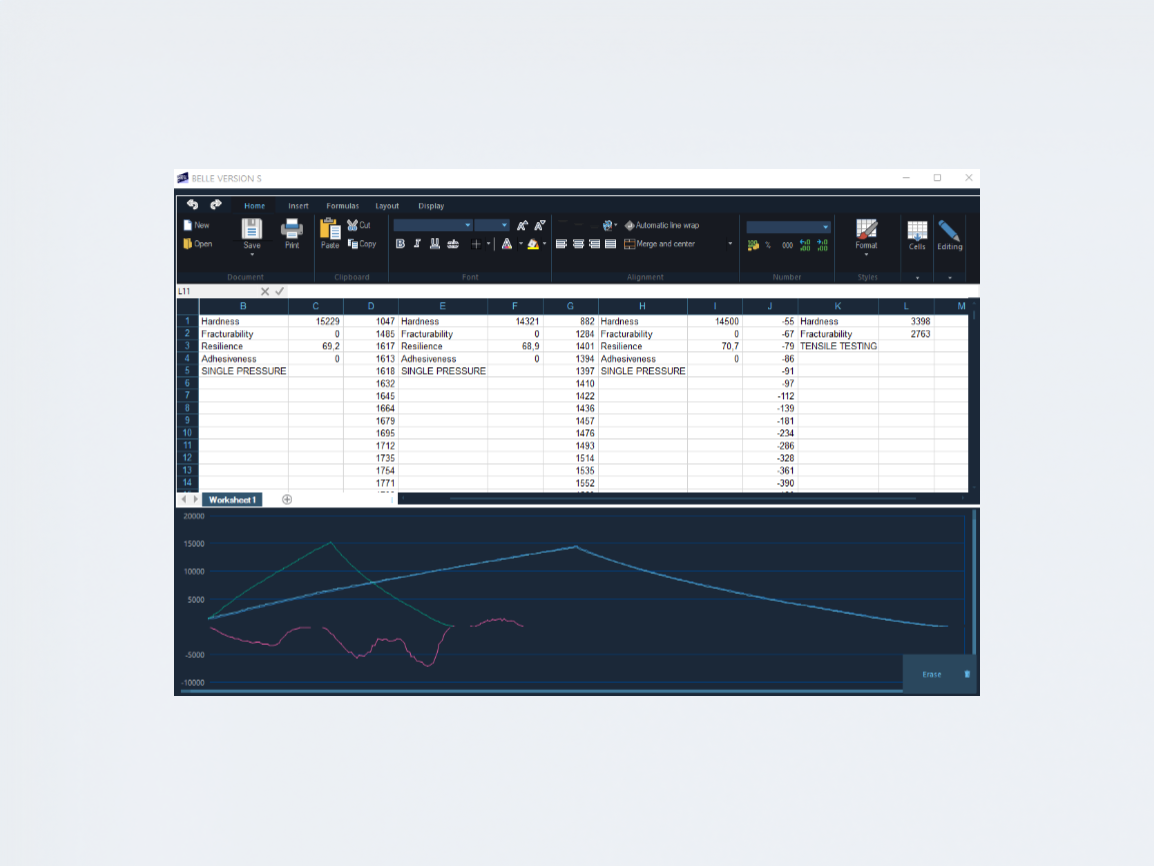

  • Bluetooth Connectivity: Connects to Android or Windows for continuous data management. The Windows app includes a light version of Excel, allowing data creation, modification, and analysis directly in the app.

Accessories: Two standard tips (8 and 11 mm²), and a wide range of optional accessories:

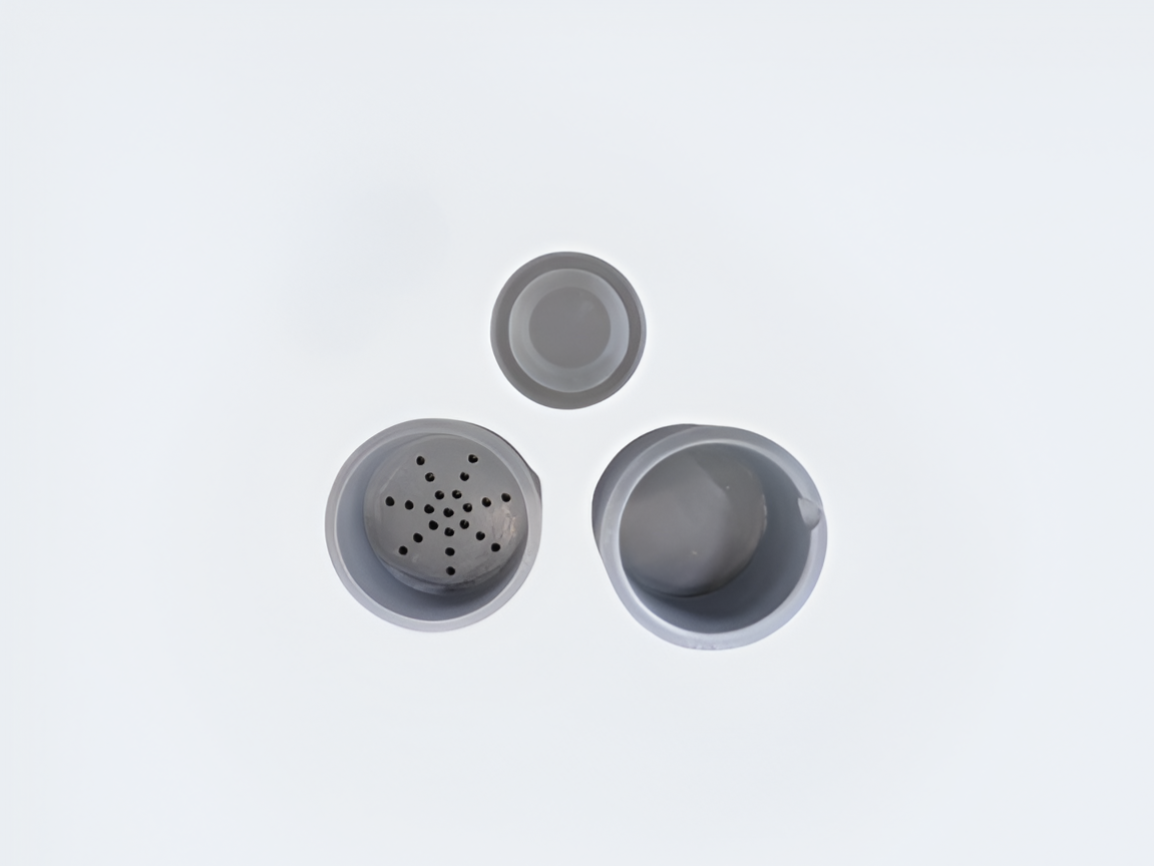

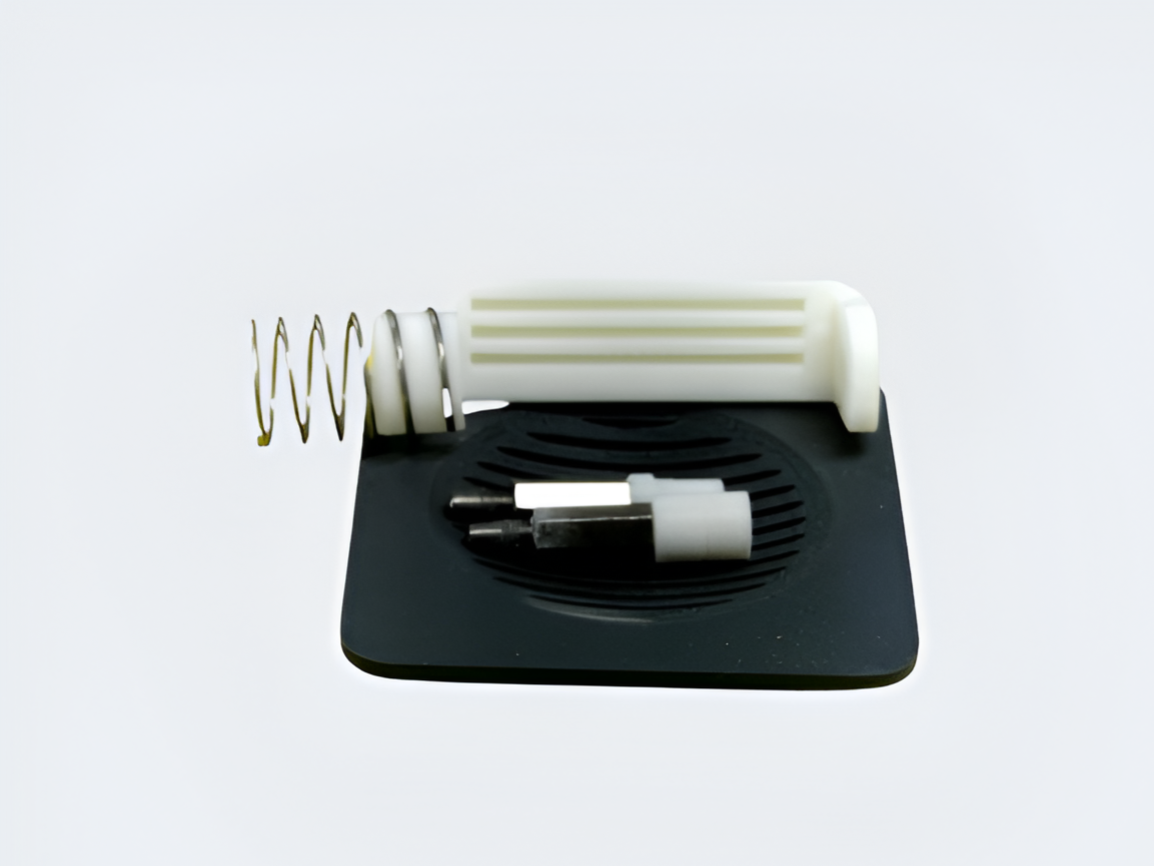

  • Specialized Testing Sets: Warner-Bratzler set for shear testing, and extrusion systems for various testing needs.

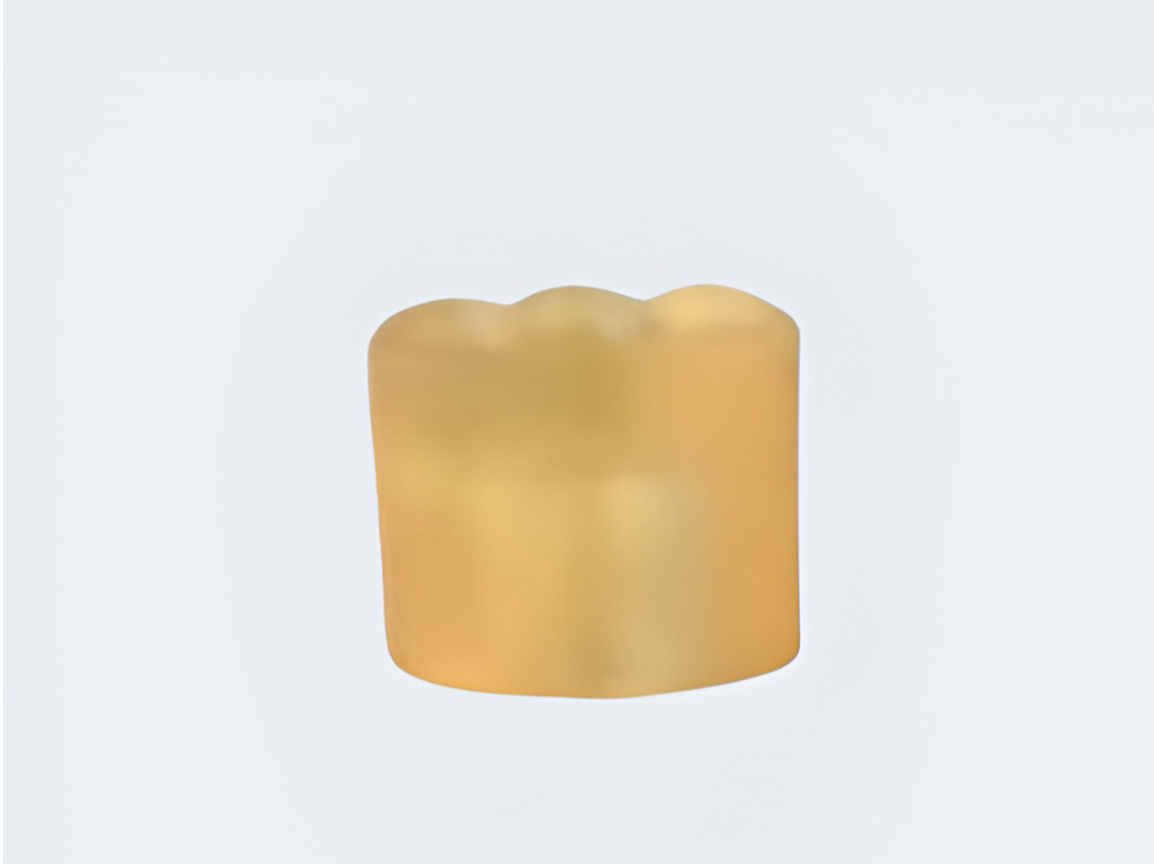

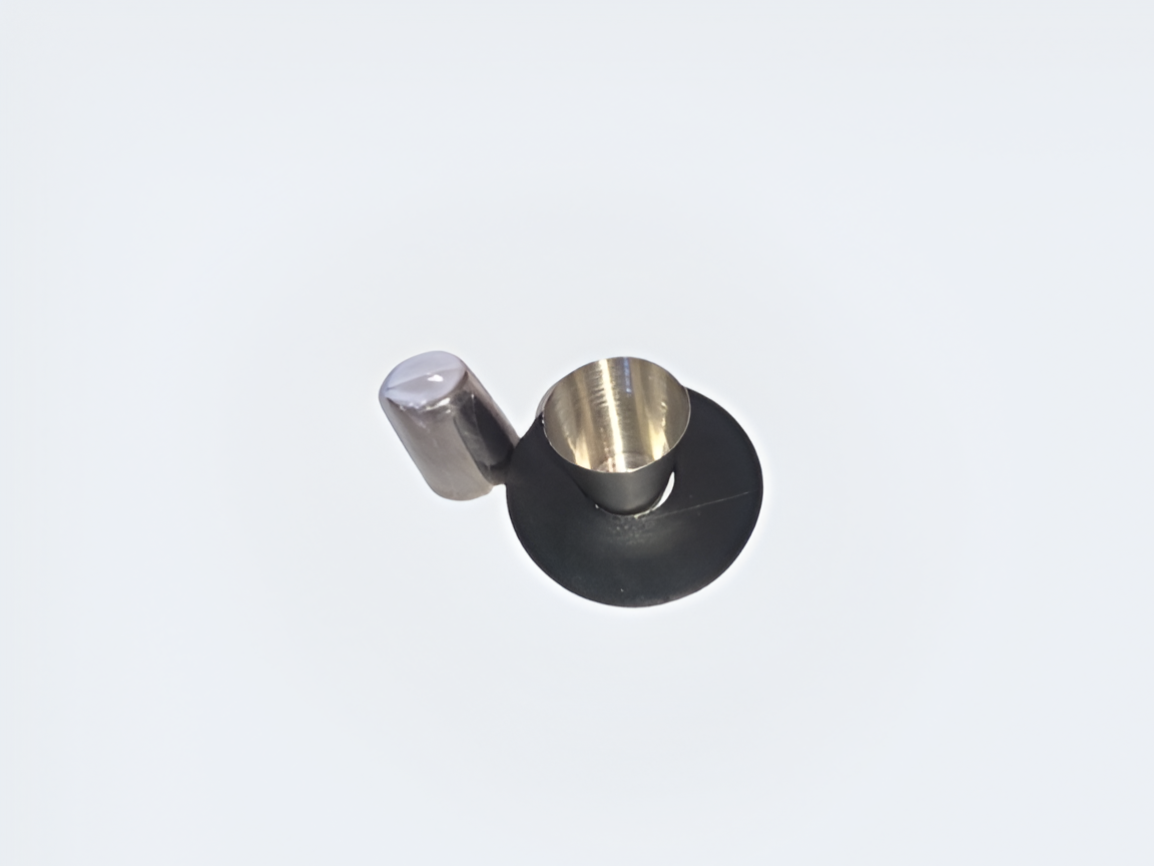

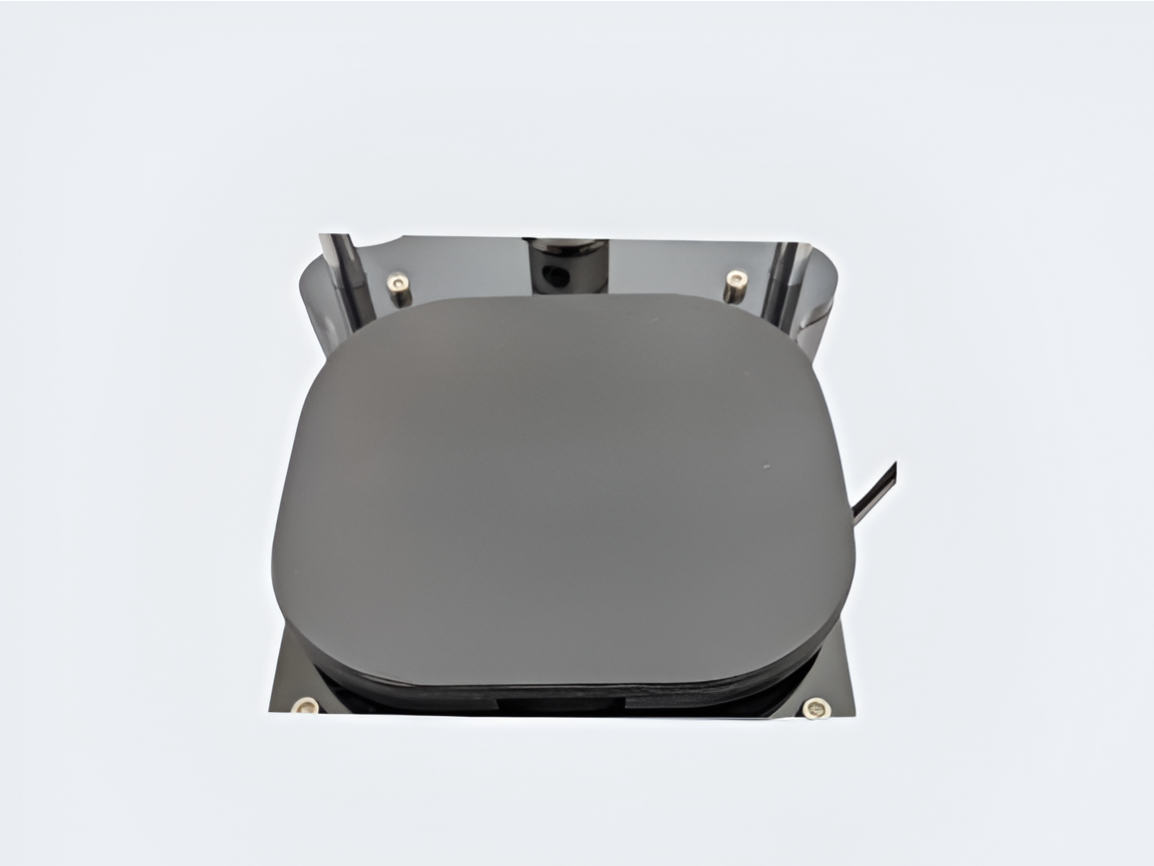

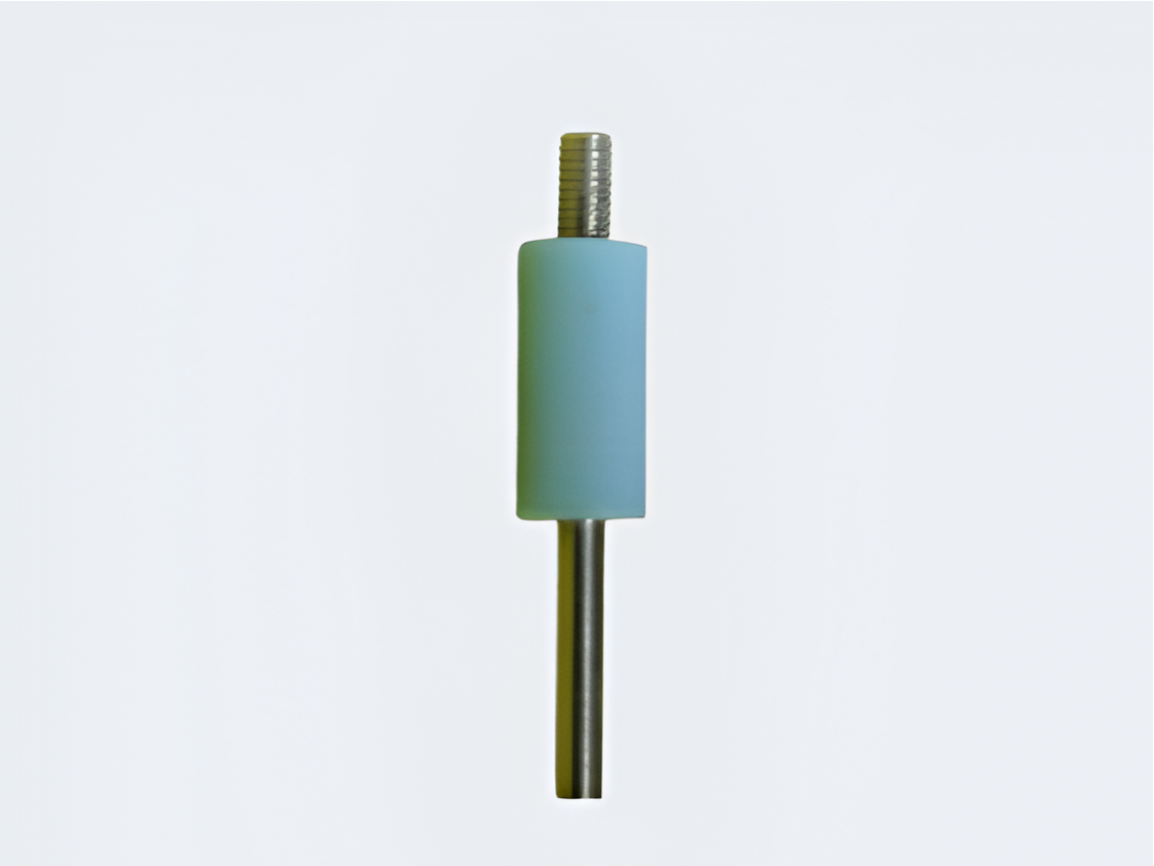

  • Additional Tips and Tables: Options for flat, hemispheric, and spheric tips, with sizes up to 50 mm, and tables for specific applications.

Pricing:

  • Base unit: €3900, including worldwide express shipping.
  • Optional Durofel module and additional accessories are available in the Accessories section.


For further details, consult the USER MANUAL

Key Features

  • Precise Measurements

    Handles up to 17 kg of pressure with a 6-gram accuracy

  • Four Testing Modes

    Single Pressure: Measures hardness, fracturability, adhesiveness, resilience. Double Pressure: Adds gumminess, springiness, chewiness, cohesiveness. Pull Mode: Captures maximum pressure and fracturability for tensile testing. Constant Pressure: Records initial and final deflection under steady load.

  • Large 4.3” Touchscreen

    Easy-to-use color interface with dual-core microcontroller—one core dedicated to measurements, the other to movements and display.

  • High-Speed Data Collection

    Records 80 measurements per second, providing detailed texture profiles with real-time data curves via Bluetooth on Android or Windows devices.

  • Bluetooth Connectivity

    Compatible with Android and Windows, featuring a free app with a light version of Excel, allowing direct data management and Excel file handling.

  • Optional Accessories

    A variety of tips, tables, and specialized testing sets (Warner-Bratzler, etc.) are available in the Accessories section.

  • Calibration Stand

    Included for on-site calibration checks with adjustable calibration factors; remote support available for further assistance.

  • Extensive Storage

    Internal memory of 2 MB, allowing storage of up to 50 batches of 300 measurements each. No storage limit when connected via Bluetooth.

  • Maintenance-Free

    The device is engineered to operate reliably throughout its lifetime, with no maintenance required. All devices come with a two-year warranty.

Applications

Food Applications

Texture Analysis: Measure hardness, chewiness, and other properties for baked goods, dairy products, and more.

Pharmaceutical Applications

Analyze the texture and tensile properties of pharmaceutical gels, tablets, and creams.

General Material Applications

Develop new materials or optimize existing ones with precise texture profiling.

Watch the AGROSTA® BELLE in action !

FAQ

What are the available testing modes?

he four modes include:

  • Single Pressure: Measures hardness, fracturability, adhesiveness, and resilience.
  • Double Pressure: Adds gumminess, springiness, chewiness, and cohesiveness.
  • Pull Mode: Evaluates tensile properties like maximum pressure and fracturability.
  • Constant Pressure: Records deflection under steady loads.
How accurate are the measurements?

Belle2 provides measurements with 6-gram accuracy, handling up to 17 kg of pressure.

Can Belle2 handle large datasets?

Yes, Belle2 stores up to 50 batches with 300 measurements each in its internal memory. There are no storage limitations when connected via Bluetooth.
