Fruits Texture Analyzer AGROSTA®FRUITLAB
Fruits Texture Analyzer AGROSTA®FRUITLAB
Fruits Texture Analyzer AGROSTA®FRUITLAB
  1. Fruits Texture Analyzer AGROSTA®FRUITLAB
  2. Fruits Texture Analyzer AGROSTA®FRUITLAB
  3. Fruits Texture Analyzer AGROSTA®FRUITLAB

Fruits Texture Analyzer AGROSTA®FRUITLAB

€3,804.00

A texture analyzer for any fruit or vegetable, functioning as both a penetrometer and deflection measurement device. Automatically measures weight and size, with customizable parameters via Windows software.

Category:

Fruits Texture Analyzer

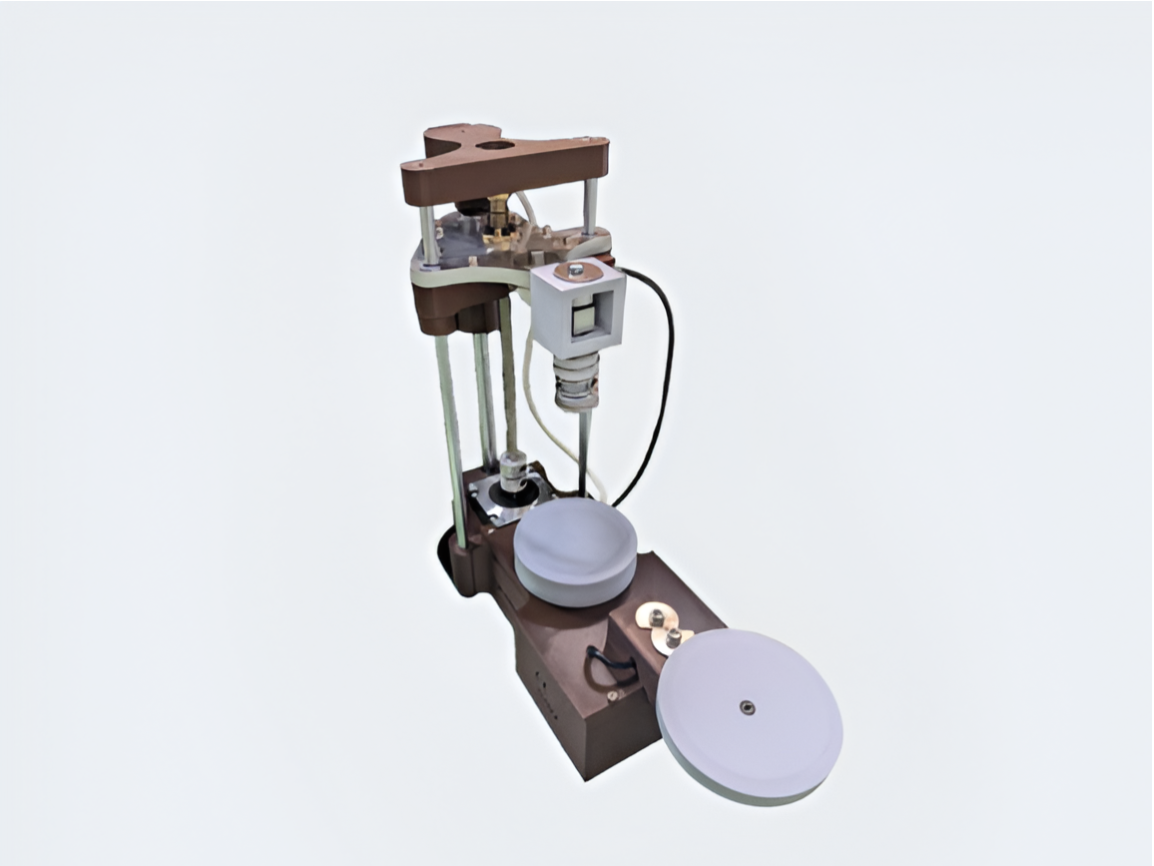

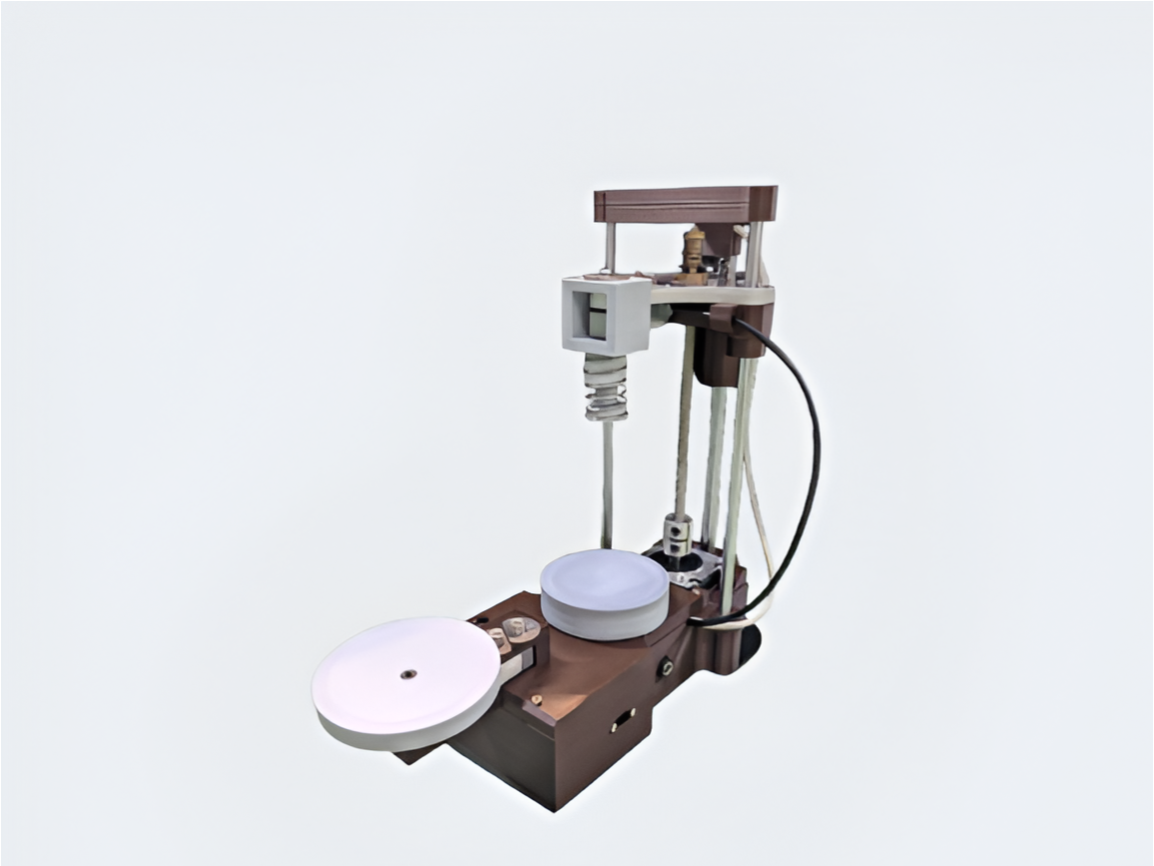

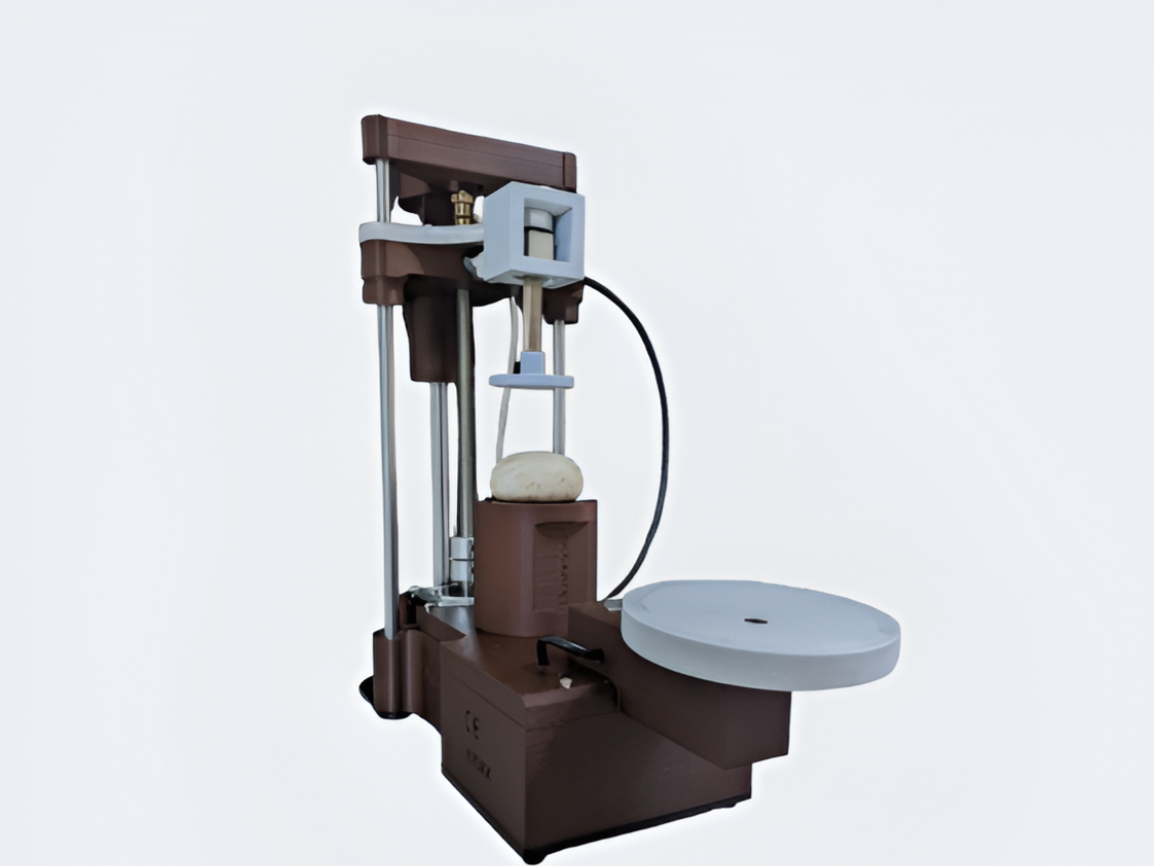

The AGROSTA®FruitLab is a multi-functional analyzer designed for texture analysis, weight, and size measurement of a wide variety of fruits and vegetables, including apples, citrus fruits, avocados, bananas, carrots, and potatoes. Equipped with advanced Windows-compatible software, it supports both penetrometry and deflection measurements, making it an essential tool for labs focused on post-harvest quality control.

Key Features:

  • Texture Analysis:

    • Load Cell Capacity: 20 kg (limited to 17 kg by software) with 1-gram precision and resolution.
    • Customizable Measurement: Measures in grams or pounds, with adjustable speed and stroke settings.
    • High Precision Mechanics: Nema 23 stepper motor and anti-backlash lead screw for stable and accurate measurements.
    • Spring System: Maintains fruit stability on the table during testing, preventing samples from lifting with the tray.

  • Lab Scale:

    • Capacity: 3 kg with 1-gram accuracy.
    • Automatic Weight Detection: Instantly records stable weight values directly to Excel, with no need to press a button.

  • Size Measurement:

    • Accuracy: 0.1mm with a resolution of 1mm, providing detailed size data for each sample.

Included Accessories:

  • Measurement Tips: Comes with two standard tips (8mm² and 11mm²) for penetrometry and deflection measurements, with additional tip options based on specific requirements.

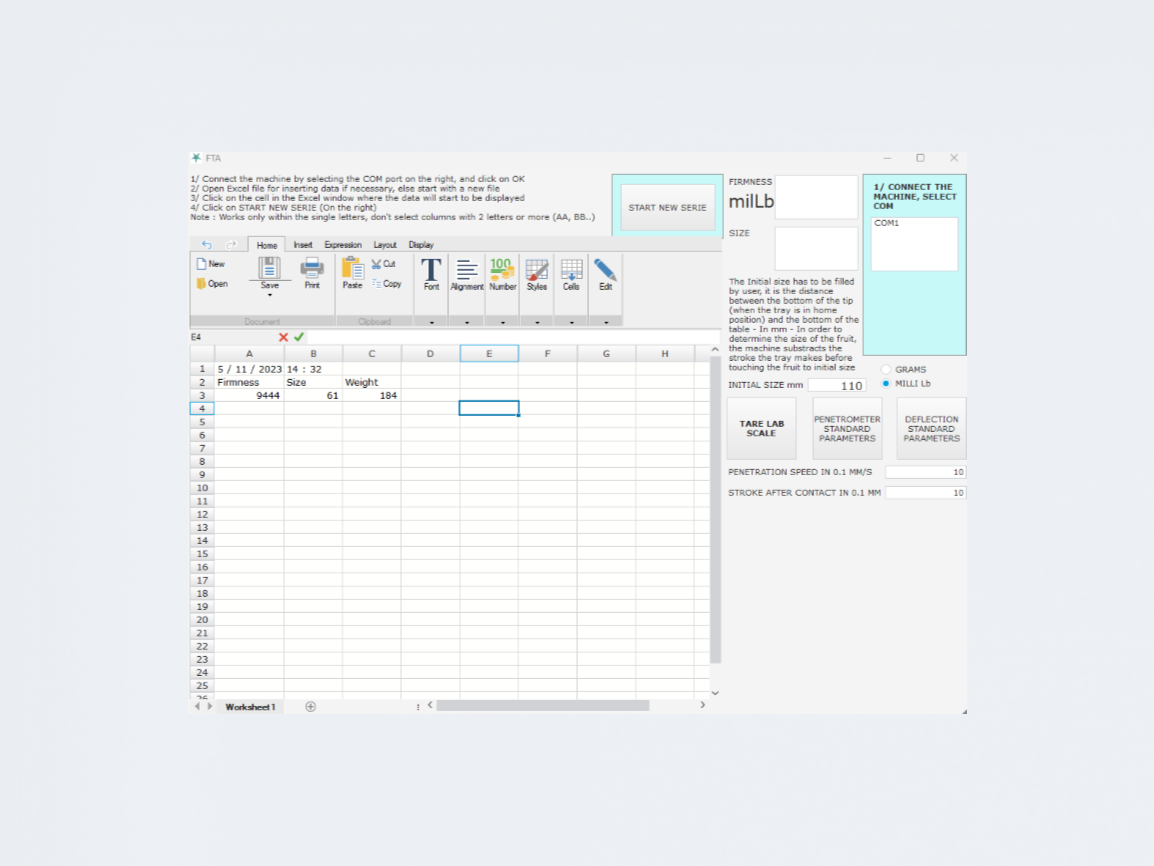

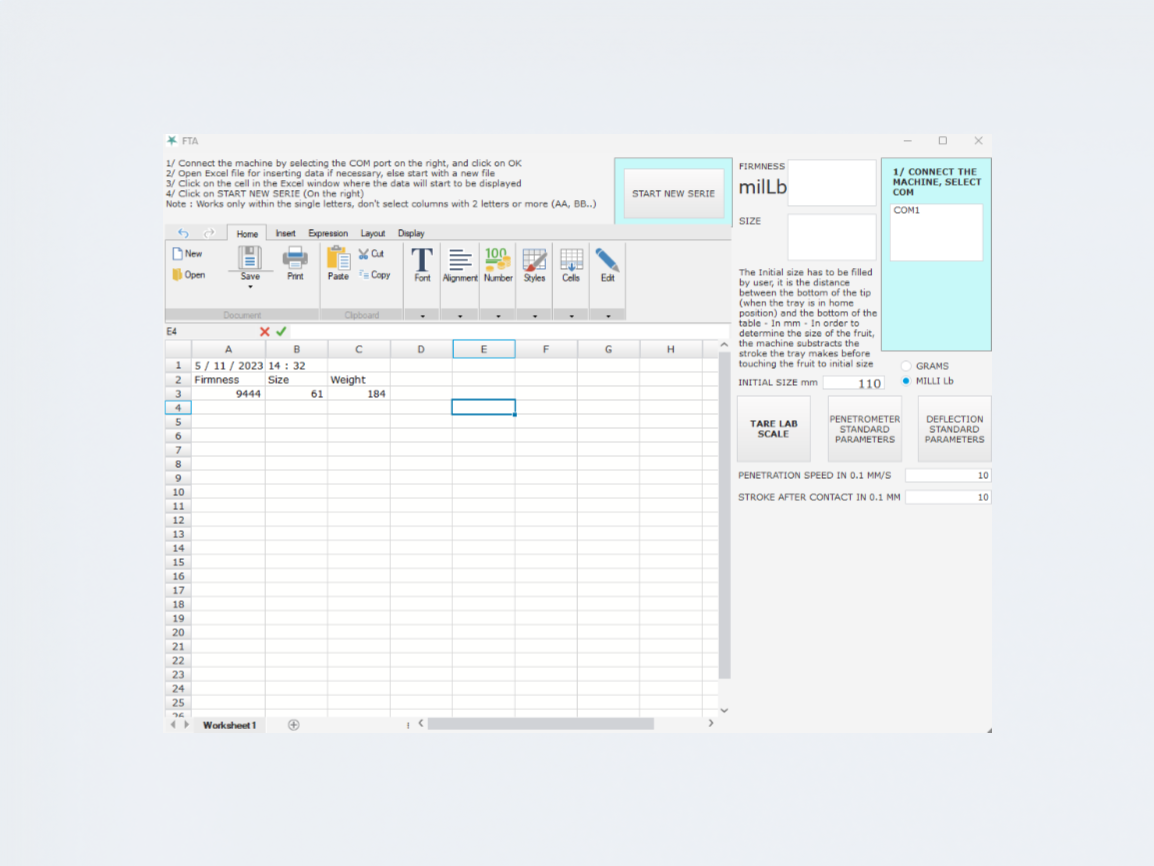

  • Complete Software for Windows: Pre-installed on a USB stick, the software includes a free license for full customization, enabling parameter adjustments (speed, stroke, unit) and data export to Excel.

Optional Durofel Module: An optional Durofel module is available for testing soft fruits and vegetables, featuring three interchangeable tips (10 for nectarine, 25 for cherry, 50 for strawberry) and a table linking pressure to the Durofel index (0 to 100%).

Pricing:

  • Base unit: Contact for pricing
  • Optional Durofel module: €472


For further details, consult the USER MANUAL

Key Features

  • Dual Measurement Modes

    Functions as a penetrometer for crisp produce (apples, pears) and as a deflection measurement device for soft fruits (cherries, tomatoes).Measures up to 20 kg (software-limited to 17 kg)

  • Lab Scale

    Weighs up to 3 kg with 1-gram accuracy. Detects weight stabilization and instantly transfers data to Excel without manual input.

  • Size Measurement

    Provides size data with 0.1mm accuracy and 1mm resolution.

  • High-Precision Mechanics

    Equipped with a Nema 23 stepper motor and anti-backlash lead screw for stability.

  • Comprehensive Software

    Windows-compatible software , enabling parameter adjustments and Excel integration.

  • Optional Durofel Module

    Includes interchangeable tips (10, 25, 50) for soft fruits and a correspondence table from 0 to 100% on the Durofel index.

  • Maintenance-Free

    The device is engineered to operate reliably throughout its lifetime, with no maintenance required. All devices come with a two-year warranty.

Applications

Comprehensive Analysis

Combine texture, weight, and size data for detailed reporting.

Batch Testing

Perform consistent quality checks for post-harvest produce.

Weight Measurement

Automatically record weights for precise batch analysis.

“We like very much the fruitlab, I want to expand our cooperation !”

From Granot

Israel

Watch the AGROSTA® FRUITLAB in action !

FAQ

How does the device measure texture?

The FruitLab offers two measurement modes:

  • Penetrometry: Ideal for firmer produce, using an 8mm² or 11mm² tip.
  • Deflection Measurement: Suitable for soft produce like avocados or bananas, ensuring non-destructive testing.
What is the Durofel module?

The optional Durofel module enhances testing capabilities for soft fruits and vegetables. It includes interchangeable tips (10, 25, and 50) and a pressure-to-Durofel index table (0 to 100%).

How accurate are the measurements?

he device provides:

  • Texture Analysis: Up to 20 kg load capacity with 1-gram precision.
  • Weight Measurement: 3 kg capacity with 1-gram accuracy.
  • Size Measurement: 0.1mm accuracy with a 1mm resolution.
